我公司可以接受各种定制的非标刀具
适用加工材料

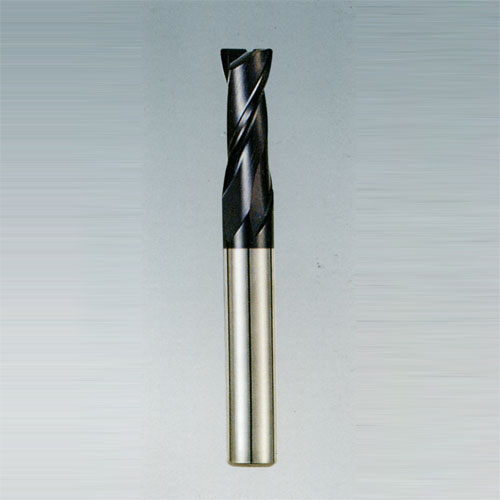

两刃平头铣刀以沟槽铣削为主，适用于HRC≤65的碳素钢，模具钢，合金钢，工具钢，不锈钢，热处理钢，钛合金等的加工。

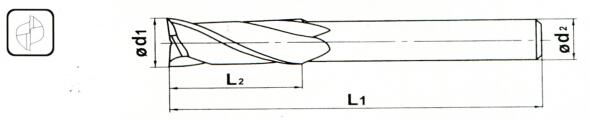

线型图
订货号 | 规格 | |||||
不涂层 | 泰坦 | D1 | L2 | D2 | L1 | ž |
HY002X-0100 | HY002X-0100C | 1 | 3 | 4 | 50 | 2 |
HY002X-0150 | HY002X-0150C | 1.5 | 4 | 4 | 50 | 2 |
HY002X-0200 | HY002X-0200C | 2 | 6 | 4 | 50 | 2 |
HY002X-0250 | HY002X-0250C | 2.5 | 7 | 4 | 50 | 2 |
HY002X-0350 | HY002X-0350C | 3.5 | 11 | 4 | 50 | 2 |
HY002X-0300 | HY002X-0300C | 3 | 8 | 4 | 50 | 2 |
HY002X-0400 | HY002X-0400C | 4 | 12 | 4 | 50 | 2 |
HY002X-0500 | HY002X-0500C | 5 | 15 | 6 | 50 | 2 |
HY002X-0600 | HY002X-0600C | 6 | 16 | 6 | 50 | 2 |
HY002X-0700 | HY002X-0700C | 7 | 18 | 8 | 60 | 2 |
HY002X-0800 | HY002X-0800C | 8 | 20 | 8 | 60 | 2 |
HY002X-0900 | HY002X-0900C | 9 | 22 | 10 | 75 | 2 |
HY002X-1000 | HY002X-1000C | 10 | 25 | 10 | 75 | 2 |
HY002X-1200 | HY002X-1200C | 12 | 25 | 12 | 75 | 2 |
HY002X-1400 | HY002X-1400C | 14 | 45 | 14 | 100 | 2 |
HY002X-1600 | HY002X-1600C | 16 | 45 | 16 | 100 | 2 |
HY002X-1800 | HY002X-1800C | 18 | 45 | 18 | 100 | 2 |
HY002X-2000 | HY002X-2000C | 20 | 45 | 20 | 100 | 2 |
