我公司可以接受各种定制的非标刀具
适用加工材料
碳素铁，铸铁，模具钢，合金钢，工具钢，热处理钢，不锈钢，钛合金

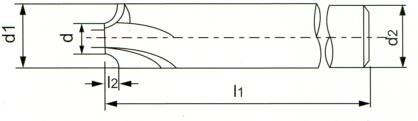

线型图
订货号 | 规格 | ||||||
不涂层 | TiAlN复合 | D1 | L2 | L1 | D2 | [R | ž |
HY013X-0100-R0.5 | HY013X -0100-R0.5C | 2 | 0.5 | 50 | 1 | R0.5 | 2 |
HY013X-0100-R0.75 | HY013X-0100-R0.75C | 2.5 | 0.75 | 50 | 1 | R0.75 | 2 |
HY013X-0100-R1.0 | HY013X -0100-R1.0C | 3 | 1 | 50 | 1 | R1.0 | 2 |
HY013X-0200-R0.5 | HY013X -0200-R0.5C | 3 | 0.5 | 50 | 2 | R0.5 | 2 |
HY013X-0200-R1.0 | HY013X-0200-R1.0C | 4 | 1 | 50 | 2 | R1.0 | 2 |
HY013X-0200-R1.5 | HY013X-0200-R1.5C | 5 | 1.5 | 50 | 2 | R1.5 | 2 |
HY013X-0300-R0.5 | HY013X-0300-R0.5C | 4 | 0.5 | 50 | 3 | R0.5 | 2-4 |
HY013X-0300-R1.0 | HY013X-0300-R1.0 | 5 | 1 | 50 | 3 | R1.0 | 2-4 |
HY013X-0300-R1.5 | HY013X-0300-R1.5C | 6 | 1.5 | 50 | 3 | R1.5 | 2-4 |
HY013X-0300-R2.0 | HY013X-0300-R2.0C | 7 | 2 | 60 | 3 | R2.0 | 2-4 |
HY013X-0400-R1.0 | HY013X -0400-R1.0C | 6 | 1 | 50 | 4 | R1.0 | 2-4 |
HY013X-0400-R1.5 | HY013X-0400-R1.5C | 7 | 1.5 | 60 | 4 | R1.5 | 2-4 |
HY013X-0400-R2.0 | HY013X-0400-R2 0C | 8 | 2 | 60 | 4 | R2.0 | 2-4 |
HY013X-0400-R3.0 | HY013X-0400-R3.0C | 10 | 3 | 75 | 4 | R3.0 | 2-4 |
HY013X-0500-R1.0 | HY013X-0500-R1.0C | 7 | 1 | 60 | 5 | R1.0 | 2-4 |
HY013X-0500-R1.5 | HY013X-0500-R1.5C | 8 | 1.5 | 60 | 5 | R1.5 | 2-4 |
HY013X-0500-R2.0 | HY013X -0500-R2.0C | 9 | 2 | 75 | 5 | R2.0 | 2-4 |
HY013X-0500-R3.0 | HY013X-0500-R3.0C | 11 | 3 | 75 | 5 | R3.0 | 2-4 |
HY013X-0600-R1.0 | HY013X-0600-R1.0C | 8 | 1 | 60 | 6 | R1.0 | 2-4 |
HY013X-0600-R1.5 | HY013X-0600-R1.5C | 9 | 1.5 | 75 | 6 | R1.5 | 2-4 |
HY013X-0600-R2.0 | HY013X-0600-R2.0C | 10 | 2 | 75 | 6 | R2.0 | 2-4 |
HY013X-0600-R3.0 | HY013X-0600-R3.0C | 12 | 3 | 75 | 6 | R3.0 | 2-4 |
HY013X-0600-R4.0 | HY013X-0600-R4.0C | 14 | 4 | 80 | 6 | R4.0 | 2-4 |
