我公司可以接受各种定制的非标刀具
适用加工材料
碳素铁，铸铁模具钢，合金钢，工具钢，钛合金，不锈钢
最适宜加工SUS304，因可耐尔镍基耐热合金等难加工材料与SS400等软材料。

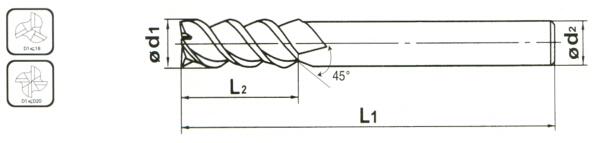

线型图
订货号 | 规格 | |||||
不涂层 | 泰坦 | D1 | L2 | L1 | D2 | ž |
HY005X-0300 | HY005X-0300C | 3 | 8 | 50 | 4 | 3 |
HY005X-0400 | HY005X-0400C | 4 | 12 | 50 | 4 | 3 |
HY005X-0500 | HY005X-0500C | 5 | 15 | 50 | 6 | 3 |
HY005X-0600 | HY005X-0600C | 6 | 16 | 50 | 6 | 3 |
HY005X-0700 | HY005X-0700C | 7 | 18 | 60 | 8 | 3 |
HY005X-0800 | HY005X-0800C | 8 | 20 | 60 | 8 | 3 |
HY005X-0900 | HY005X-0900C | 9 | 22 | 75 | 10 | 3 |
HY005X-1000 | HY005X-1000C | 10 | 25 | 75 | 10 | 3 |
HY005X-1100 | HY005X-1100C | 11 | 25 | 75 | 12 | 3 |
HY005X-1200 | HY005X-1200C | 12 | 25 | 75 | 12 | 3 |
HY005X-1300 | HY005X-1300C | 13 | 30 | 80 | 14 | 3 |
HY005X-1400 | HY005X-1400C | 14 | 45 | 100 | 14 | 3 |
HY005X-1500 | HY005X-1500C | 15 | 45 | 100 | 16 | 3 |
HY005X-1600 | HY005X-1600C | 16 | 45 | 100 | 16 | 3 |
HY005X-1800 | HY005X-1800C | 18 | 45 | 100 | 16 | 3 |
HY005X-2000 | HY005X-2000C | 20 | 45 | 100 | 20 | 4 |
HY005X-2500 | HY005X-2500C | 25 | 45 | 100 | 25 | 4 |
