我公司可以接受各种定制的非标刀具
适用加工材料
碳素钢，模具钢，合金钢，工具钢，不锈钢，热处理钢，钛合金

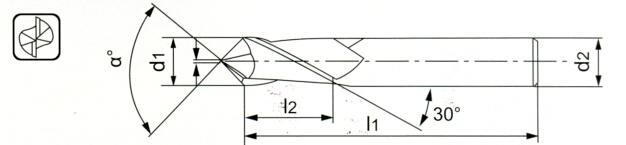

线型图
订货号 | 规格 | |||||
不涂层 | TiAlN复合 | D1 | L2 | L1 | D2 | 一个 |
HY015X-0300 | HY015X-0300C | 3 | 6 | 50 | 4 | 60°-150° |
HY015X-0400 | HY015X-0400C | 4 | 8 | 50 | 4 | 60°-150° |
HY015X-0500 | HY015X-0500C | 5 | 10 | 50 | 6 | 60°-150° |
HY015X-0600 | HY015X-0600C | 6 | 12 | 60 | 6 | 60°-150° |
HY015X-0800 | HY015X-0800C | 8 | 16 | 75 | 8 | 60°-150° |
HY015X-1000 | HY015X-1000C | 10 | 20 | 75 | 10 | 60°-150° |
HY015X-1200 | HY015X-1200C | 12 | 25 | 75 | 12 | 60°-150° |
HY015X-1400 | HY015X-1400C | 14 | 28 | 80 | 14 | 60°-150° |
HY015X-1600 | HY015X-1600C | 16 | 32 | 100 | 16 | 60°-150° |
HY015X-2000 | HY015X-2000C | 20 | 35 | 100 | 20 | 60°-150° |
