我公司可以接受各种定制的非标刀具

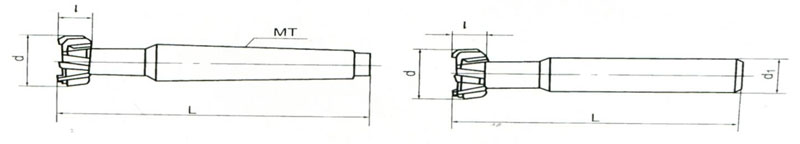

线型图
订货号 | 槽尺寸 | d | 大号 | 升 | ž | |
YTZX01 | 12 | 21 | 105 | 9 | 4 | 2＃ |
YTZX02 | 14 | 25 | 105 | 11 | 6 | 2＃ |
YTZX03 | 18 | 32 | 110 | 15 | 6 | 2＃ |
YTZX04 | 22 | 40 | 140 | 18 | 6 | 3＃ |
YTZX05 | 28 | 50 | 175 | 22 | 6 | 4＃ |
YTZX06 | 36 | 60 | 190 | 28 | 8 | 4＃ |
YTZX07 | 42 | 72 | 230 | 35 | 8 | 5＃ |
YTZX08 | 48 | 85 | 240 | 40 | 8 | 5＃ |
YTZX09 | 54 | 95 | 250 | 44 | 8 | 5＃ |
YTZX10 | 12 | 21 | 12 | 74 | 9 | 4 |
YTZX11 | 14 | 25 | 16 | 82 | 11 | 6 |
YTZX12 | 18 | 32 | 16 | 90 | 14 | 6 |
YTZX13 | 22 | 40 | 25 | 108 | 18 | 6 |
YTZX14 | 28 | 50 | 32 | 24 | 22 | 6 |
YTZX15 | 36 | 60 | 32 | 139 | 28 | 8 |
